Electromagnetic overhead crane is a device that utilizes electromagnetic suction to lift and move heavy objects. It usually consists of electromagnet, wire rope, lifting hook and lifting mechanism. Its working principle is to generate a strong magnetic field by energizing the electromagnet, and then place it above the object that needs to be lifted, and use the magnetic field to attract the metal material on the surface of the object to achieve lifting. When the object needs to be released, just disconnect the current, the magnetic field disappears and the object is released.
Electromagnetic Overhead crane features
- Magnetization of power failure
Magnetization can prevent the objects under the spreader from falling accidentally when the equipment suddenly loses power, so as to avoid causing safety accidents, and the general time of magnetization is 15-30 minutes. - Simple and convenient assembly
Any detachable electromagnetic spreader, round disk, square disk, oval disk and electromagnetic hanging beam can be installed according to the usage. - Speed regulation of each organization
The speed regulation of each mechanism can be provided according to the user’s requirements, which can reach 1:10 or greater.
Types of Electromagnetic Overhead crane

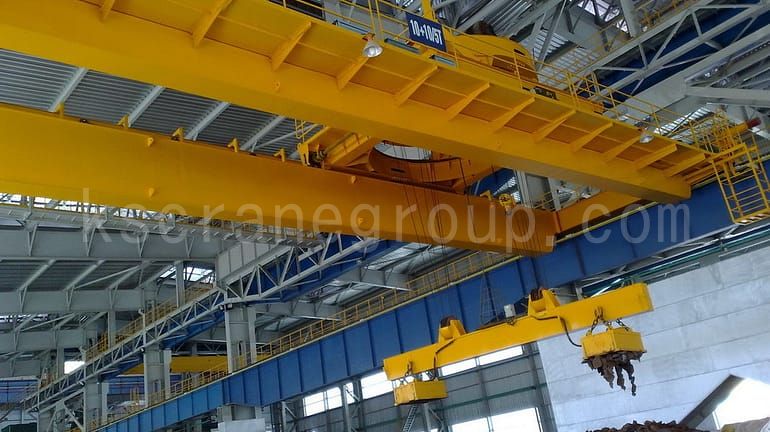

QC Electromagnetic Overhead Cranes
Spreader: round disk, square disk, oval disk
Usage Scenario: Suitable for sucking and lifting cast iron ingot, steel ball, billet, pig iron block, machining chips, all kinds of miscellaneous iron in foundry, blast furnace material, cut material head, baling scrap steel, etc.
| Capacity(t) | Span(m) | Lifting height(m) | Lifting speed(m/min) | Working duty | Total weight(t) | ||
|---|---|---|---|---|---|---|---|
| Main hook | Auxiliary hook | Main hook | Auxiliary hook | ||||
| 5 | 10.5-31.5 | 16 | 15.6 | A6 | 13.64-32.84 | ||
| 10 | 10.5-31.5 | 16 | 13 | A6 | 19.5-39.2 | ||
| 16 | 10.5-31.5 | 16 | 13 | A6 | 20.6-42.3 | ||
| 16/3.2 | 10.5-31.5 | 16 | 18 | 13 | 14.6 | A6 | 20.61-42.82 |
| 20/5 | 10.5-31.5 | 12 | 14 | 12.6 | 15.5 | A6 | 21.86-46.04 |
| 32/5 | 10.5-31.5 | 16 | 18 | 9.5 | 15.5 | A6 | 28.92-57.14 |
Here are detailed parameters: qc-electromagnetic-overhead-cranes-parametric.pdf

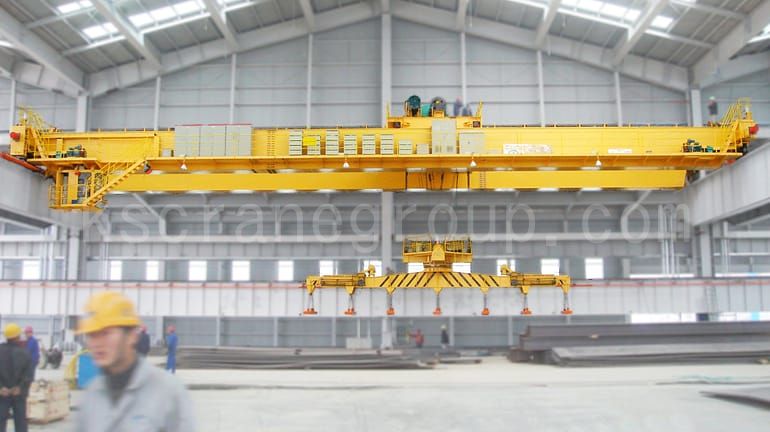

Overhead Crane with Electromagnetic Beam
Spreader: electromagnetic hanging beam
Usage Scenario: It is suitable for loading, unloading and carrying steel plates, sections, coils and other materials in indoor or open-air fixed spans in steel mills, shipyards, ports, yards and warehouses, etc. The hanging beam can be carried under electromagnetic suction and clamping devices. Under the hanging beam, electromagnetic suction cups, clamps and other special spreaders can be carried.
| Capacity(t) | Span(m) | Lifting height(m) | Lifting speed(m/min) | Working duty | Total weight(t) |
|---|---|---|---|---|---|
| 5+5 | 10.5-31.5 | 16 | 13.2-15.7 | A6、A7 | 19.3-43.2 |
| 7.5+7.5 | 10.5-31.5 | 16 | 12.5-15.4 | A6、A7 | 23.6-49.8 |
| 10+10 | 10.5-31.5 | 12 | 13.5-15.9 | A6、A7 | 26.5-51.2 |
| 16+16 | 10.5-31.5 | 16 | 13.6-15.3 | A6、A7 | 38.1-73.5 |
| 20+20 | 10.5-31.5 | 12 | 11.8-15.22 | A6、A7 | 43.6-78.7 |
Here are detailed parameters: overhead-crane-with-electromagnetic-beam-parametric.pdf
Overhead Crane with Upper Rotating Electromagnetic Beam
Spreader: rotatable electromagnetic hanging beam
Usage Scenario: It is suitable for loading, unloading and carrying steel plates, profiles, coils and other materials in indoor or open-air fixed spans in steel mills, yards and warehouses, etc. It is especially suitable for lifting different specifications and requiring horizontal rotation. Especially suitable for lifting different specifications and need to rotate horizontally. Special spreader for carrying electromagnetic suction cups under the hanging beam.
| Capacity(t) | Span(m) | Lifting height(m) | Lifting speed(m/min) | Working duty | Turn round(r/min) |
|---|---|---|---|---|---|
| 5+5 | 28.5 | 12 | 12.4 | A6 | 1.5 |
| 10+10 | 25-34 | 16 | 12.6 | A7 | 1.36 |
| 16+16 | 25-33 | 10-16 | 14.8-16 | A6 | 1.36-1.85 |
| 25+25 | 25 | 10 | 15.4 | A6 | 1.4 |
Here are detailed parameters: overhead-crane-with-upper-rotating-electromagnetic-beam-parametric.pdf
Overhead Crane with Lower Rotating Electromagnetic Beam
Spreader: rotatable and retractable electromagnetic hanging beams
Usage Scenario: Used in steel mills, shipyards, ports, yards and warehouses, etc. for unloading and handling steel plates, sections, coils and other materials in indoor or open-air fixed spans. Especially suitable for lifting different specifications and need to rotate horizontally. The hanging beam is cross structure, reliable and safe, with a certain anti-swing function. According to the specification (different thickness, length, number of sheets, etc.) and weight of the material to be lifted, it can electrically adjust the spacing of electromagnet and steplessly adjust the magnetic force of electromagnet.
| Capacity(t) | Span(m) | Lifting height(m) | Lifting speed(m/min) | Working duty | Turn round(r/min) |
|---|---|---|---|---|---|
| 15 | 34.3 | 5.5 | 12.2 | A6 | 1 |
| 25 | 46.3 | 5 | 11.8 | A6 | 1 |
| 30 | 53.3 | 5 | 12 | A6 | 1 |
Here are detailed parameters: overhead-crane-with-lower-rotating-electromagnetic-beam-parametric.pdf
Electromagnetic spreader in crane
Corresponding to different materials are equipped with suitable electromagnetic spreader, the following is a variety of electromagnetic spreader:

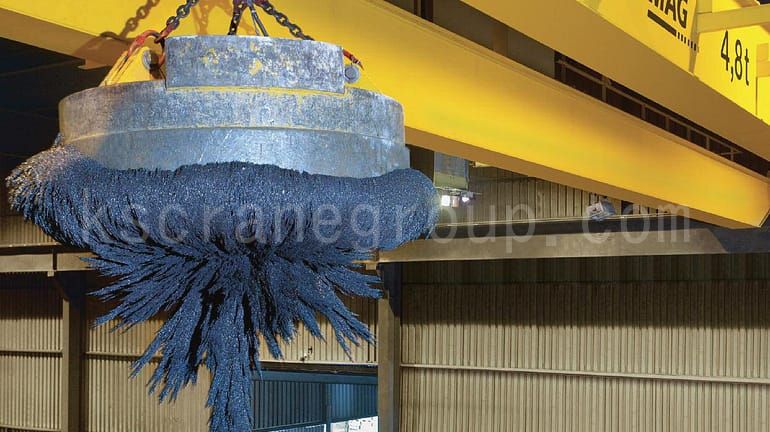

Lifting Electromagnet for Steel Scraps
Lifting Electromagnet for Billet, Girder Billet and Slab
Lifting Electromagnet for High Speed Wier(Coiled Bar)
Lifting Electromagnet for Bundled Rebar and Profiled Steel
Lifting Electromagnet for Rebar and Steel Pipe
Lifting Electromagnet for Heavy Rail and Profiled Steel
Lifting electromagnets for lifting steel plates
Specialized electromagnet for lifting steel plates
Lifting Electromagnet for Thick Plate
Lifting Electromagnet for Turning and Side Hung
Electromagnetic Overhead crane safety features
- Overweight protection and alarm device.
- Voltage drop protection function (especially in some countries that cannot provide stable voltage, such as Vietnam).
- Emergency stop device to prevent damage in emergency.
- PLC control and fault detection
- A cover protects the external hoist, drive unit, electrical compartment from rain and sunlight.
- Warning Indicator Lamp:Distinguishes between different situations by flashing lights or warning sounds.
