Versatile QZ Double Girder Overhead Crane with Grab Bucket

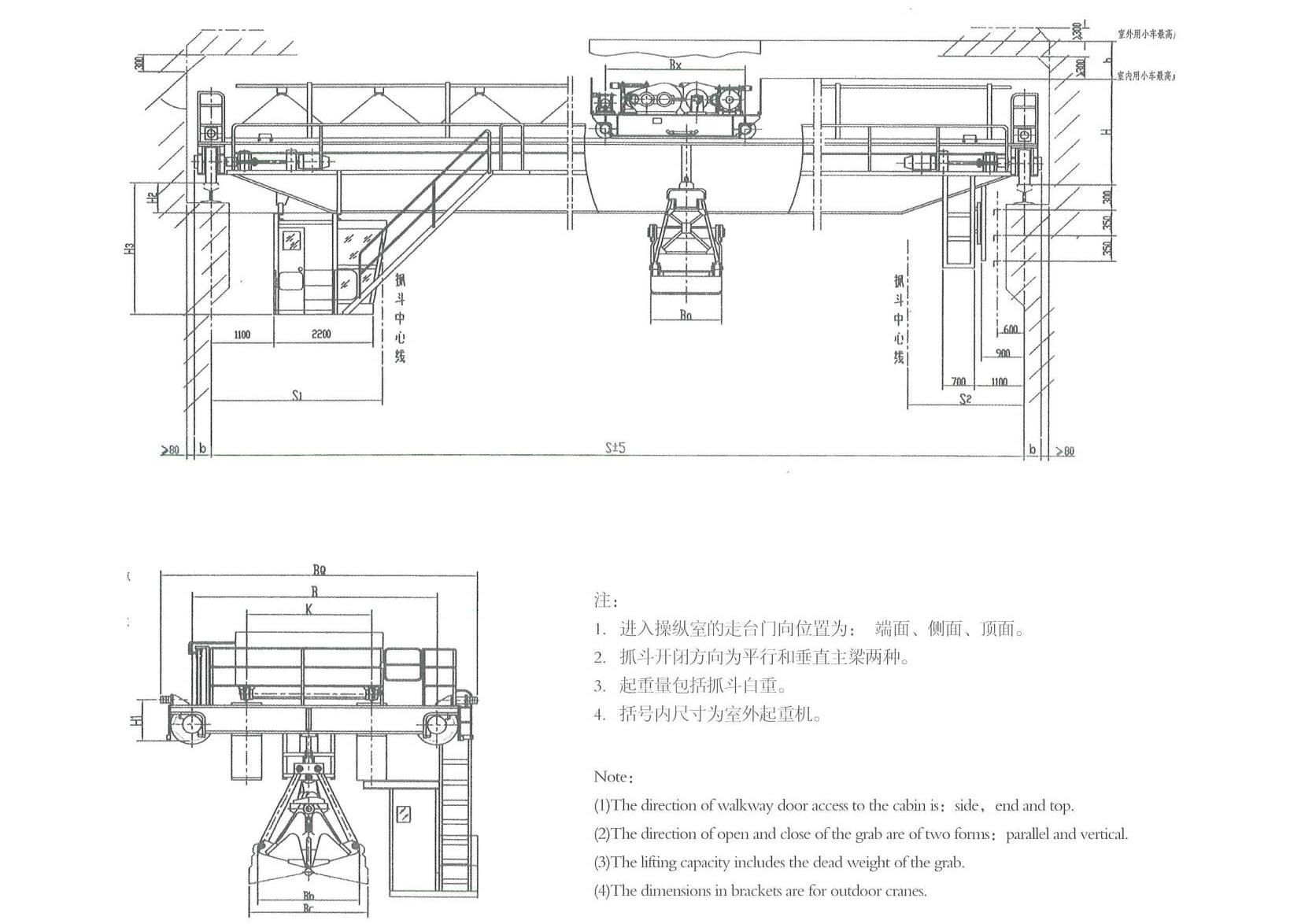

This double girder overhead crane with grab bucket consists of a box-shaped bridge, grab trolley, trolley traveling mechanism, operator cabin, and electrical control system. The lifting device is a mechanical four-rope double-clamshell grab. The grab trolley is equipped with a hoisting mechanism and an opening/closing mechanism. The grab uses four steel ropes wound separately on the hoisting and opening/closing drums. The opening/closing mechanism drives the grab to close and grasp the material. Once the grab closes, the hoisting mechanism is immediately activated, allowing the four steel ropes to bear the load evenly and lift the material.

Ужыванне

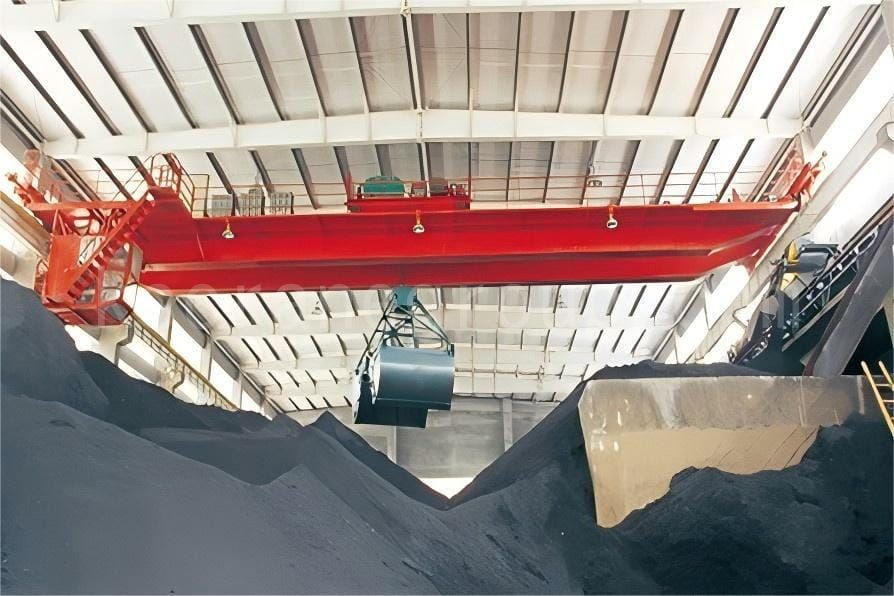

This double girder overhead crane with a grab bucket is primarily used for the grabbing and handling of various powdered and granular bulk materials. It can be applied in a wide range of settings, including steel plant cyclone well workstations, blast furnace ironmaking projects, coal bunkers, and more.

Спецыфікацыя

Перавага

• The cross-section of the main beam is analyzed using the ANSYS finite element calculation method to ensure sufficient strength, rigidity, and overall stability.
• The operator cabin is designed to meet various functional needs, being durable, safe, and reliable, while also providing good visibility, comfort, and an aesthetically pleasing environment, ensuring a pleasant experience for the operator during use.
• The grab bucket crane is equipped with a complete set of safety devices, including overload limiters, safety guards, height limiters, and travel limiters.
• The hoisting mechanism is easy to operate, stable in performance, and highly productive.
• The company is equipped with comprehensive testing facilities, including magnetic particle inspection, ultrasonic testing, and impact testing machines, to ensure product quality.

Case with price

• Type: Grab bucket Eot crane
• Грузападымальнасць: 10 тон
• Span: 28.5 m
• Lifting height: 8 m
• Lifting speed: 29 m/min
• Traveling speed: 89 m/min (crane), 45.6 m/min (trolley)
• Працоўны абавязак: A6
• Метад кіравання: кіраванне кабінай + дыстанцыйнае кіраванне
• Application: Grabbing magnesite ore
• Daily material handling capacity: 250 tons (12 hours)
• Price: 401,000 RMB

Customized services

In addition, Henan Kuangshan Crane can provide customized services, offering different types of grab buckets to meet your specific work site and operational requirements.

Henan Kuangshan Crane has strong technical and equipment support and can design and manufacture intelligent unmanned grab bucket overhead cranes.

Паслугі

Kuangshan Crane has over 20 years of extensive experience in manufacturing and exporting double girder overhead cranes with grab buckets, offering necessary spare parts and professional installation and maintenance guidance services for all grab overhead cranes.

• Запасныя часткі
  We will prepare the required spare parts for your grab bucket Eot crane so that any damaged or lost parts can be promptly replaced, reducing maintenance downtime and improving production efficiency.
• Ўстаноўка
  We provide detailed video installation procedures of the crane, and if needed, we can also offer remote video guidance.
• Тэхнічнае абслугоўванне
  Мы даем падрабязныя інструкцыі па тэхнічным абслугоўванні і прапануем бясплатныя кансультацыі па любых пытаннях, якія могуць узнікнуць падчас выкарыстання крана.

Henan Kuangshan Crane Co., Ltd. is a professional grab crane manufacturer and service provider. With the R&D advantages and complete industrial chain we have accumulated over 20 years, we have provided the highest cost-performance products and services to tens of thousands of customers in 122 countries worldwide. If you have any crane-related needs, don’t hesitate to contact us for the latest quotes and professional services.
