25t LH Double Girder Overhead Crane & Steel Structure exported to Nigeria

26 Aug, 2017

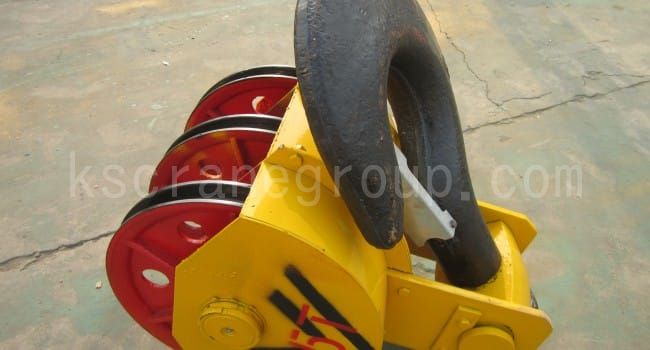

1. 25t Hook 650x350
At 10th Jan, 2015, we exported a 25t LH Double Girder Overhead Crane & matched steel structure to Nigeria. This 25t overhead crane will be used in our client's new workshop. Since there is a 6.484m height machine under the main beam, our client have strict requirement of the main beam's height. After detailed discussion with our client and engineer, we make new design for client. Offer 6m steel stand column for client, use 700*300 travel beam, and P38 rails. Besides, to shorten the height of main beam, we use special trolley. Finally, our design realizes client's requirement of 6.05m lift height and more than 6.9m height under main beam. During the discussion, if you have any special requirement, please directly tell us, we will try our best to turn your requirement into practical design.
Basic Technical Parameter:
  • Lift Capacity: 25t
  • Lift Height: 6.05m
  • Span: 7m
  • Lift Speed: 2.7m/min
  • Offer Totally Steel Structure
  • Lift Mold
  • Beam Height is more than 6.9m
  • Travel Length: 31m
  • Power: 380v, 50hz,3ac

25t Trolley

2. 25t Trolley 650x350

Travel Beam & Steel Stand Column

3. Travel Beam Steel Stand Column 1 650x350

Reinforcement Structure

4. Reinforcement Structure 650x350

Load of Main Beam, End Beam, Platform, and 25t Trolley

5. Load of Main Beam End Beam Platform and 25t Trolley 3 650x350
